Isoplane320 Wavelength Calibration Test#
Configure the matplotlib backend for high-resolution retina display.
Import necessary libraries, including kspecdr modules for instrument handling, IO, preprocessing, tramline mapping, extraction, and calibration. Also define the working directory and resource paths.
from pathlib import Path
import numpy as np
from astropy.io import fits
from astropy.table import Table
from matplotlib import pyplot as plt
from scipy.signal import find_peaks_cwt, find_peaks
from rascal.util import refine_peaks
from matplotlib.lines import Line2D
from mpl_toolkits.axes_grid1.inset_locator import inset_axes, mark_inset
from kspecdr.inst.isoplane import convert_isoplane_header, add_fiber_table
from kspecdr.io.image import ImageFile
from kspecdr.preproc.make_im import make_im
from kspecdr.tlm.make_tlm import read_instrument_data, make_tlm
from kspecdr.extract.make_ex import make_ex
from kspecdr.extract.reduce_arc import reduce_arcs
from kspecdr.wavecal.arc_io import read_arc_file
plt.rcParams["figure.dpi"] = 300
WD = Path("/data1/hbahk/kspec/kspecdr")
RESOURCES = WD / "resources"
TESTDIR = RESOURCES / "isoplane_arctest_20251224"
/home/hbahk/miniconda3/envs/twodfdr/lib/python3.12/site-packages/rascal/calibrator.py:9: TqdmExperimentalWarning: Using `tqdm.autonotebook.tqdm` in notebook mode. Use `tqdm.tqdm` instead to force console mode (e.g. in jupyter console)
from tqdm.autonotebook import tqdm
Load a raw fiber flat field image. Since the raw data from the laboratory might not have the standard headers expected by the pipeline, we convert the header using convert_isoplane_header, add a dummy fiber table using add_fiber_table, and save the result as a new FITS file suitable for processing.
hdul = fits.open(TESTDIR / "flat_150_490_1sec 2025-12-24.fits")
hdr = hdul[0].header
# cleaned_hdr = sanitize_header_drop_unparsable(hdr)
new_hdr = convert_isoplane_header(hdr, ndfclass="MFFFF")
# add fiber table
add_fiber_table(hdul, n_fibers=16)
# just use the first frame for now
hdul[0].data = hdul[0].data[0]
# make new fits file with new header and fiber table
new_hdr["NAXIS"] = 2
new_hdr.remove("NAXIS3")
hdul[0].header = new_hdr
new_fpath = TESTDIR / "flat_150_490_1sec_converted.fits"
hdul.writeto(new_fpath, overwrite=True)
hdul.info()
Filename: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec 2025-12-24.fits
No. Name Ver Type Cards Dimensions Format
0 PRIMARY 1 PrimaryHDU 188 (1340, 1300) uint16
1 FIBRES 1 BinTableHDU 13 16R x 2C ['1A', '20A']
WARNING: TimeDeltaMissingUnitWarning: Numerical value without unit or explicit format passed to TimeDelta, assuming days [astropy.time.core]
Inspect the fiber table extension of the converted FITS file to ensure the fiber definitions are correct.
Table(hdul[1].data)
Table length=16
| TYPE | NAME |
|---|---|
| str1 | str20 |
| P | Fiber 1 |
| P | Fiber 2 |
| P | Fiber 3 |
| P | Fiber 4 |
| P | Fiber 5 |
| P | Fiber 6 |
| P | Fiber 7 |
| P | Fiber 8 |
| P | Fiber 9 |
| P | Fiber 10 |
| P | Fiber 11 |
| P | Fiber 12 |
| P | Fiber 13 |
| P | Fiber 14 |
| P | Fiber 15 |
| P | Fiber 16 |
Note
Fibre status codes used in the configuration are defined as follows:
F: Fiducial star (guide fibre).
N: Not in use. The fibre is broken, dead, or otherwise unusable. These fibres are not placed on the focus plate, but may still receive some vignetted light from a random sky position.
P: Program (science) target.
S: Sky fibre, used for sky background measurements.
U: Unallocated (unused) fibre. These fibres are not part of the current fibre configuration. In previous observations, they may or may not have been placed on the focus plate. Currently, they are always parked at the plate edge. If on the plate, they observe a random sky position; if off the plate, they may still receive vignetted light from a random sky position.

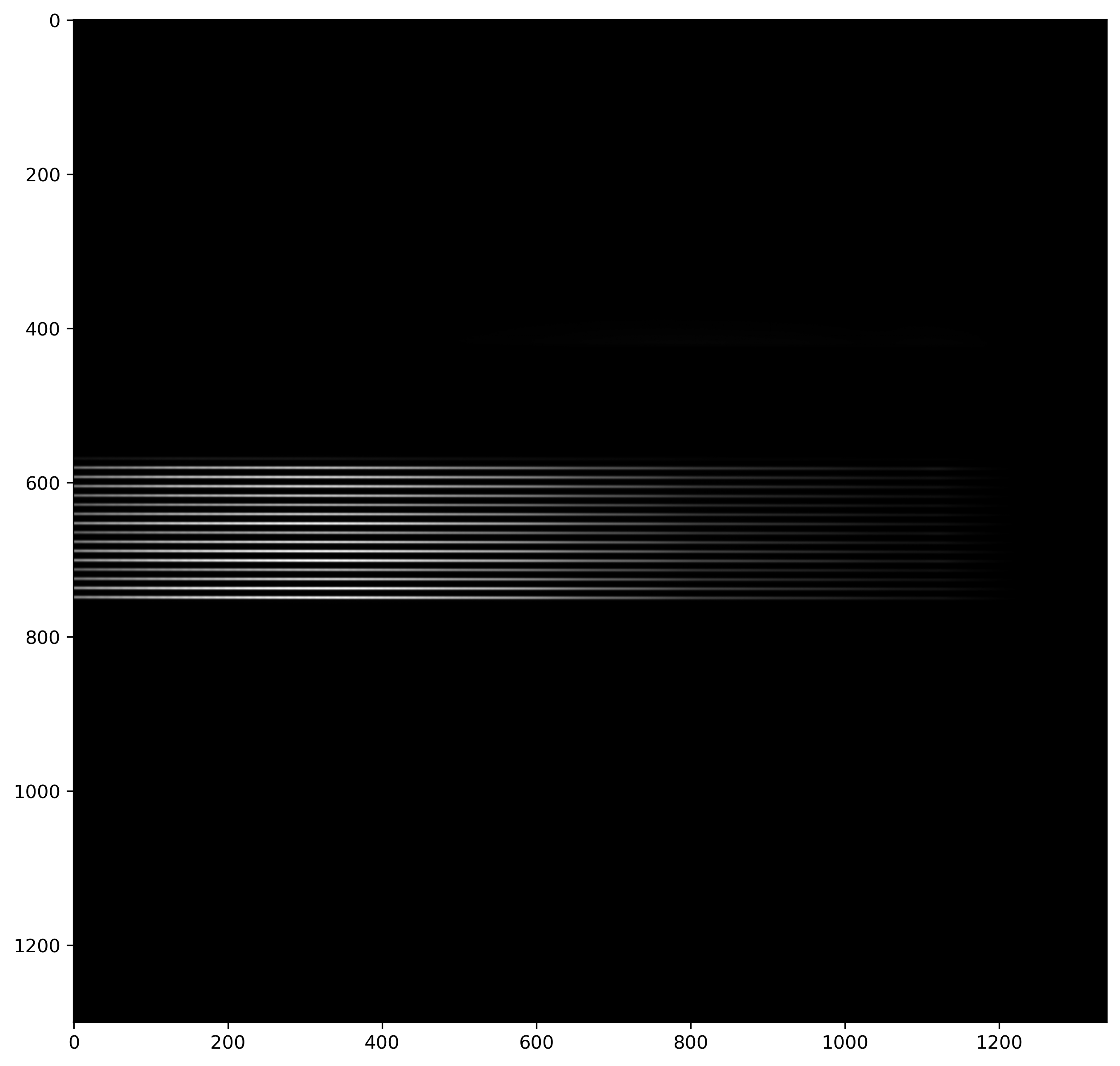

Display the raw image data to visually verify the input.
fig = plt.figure(figsize=(10, 10))
ax = fig.add_subplot(111)
ax.imshow(hdul[0].data, cmap="gray")
plt.show()
Run make_im to preprocess the image. This step performs tasks such as bias subtraction and cosmic ray rejection (disabled here), creating an ‘im’ file.
args = {"IMAGE_FILENAME": new_fpath.as_posix()}
im = ImageFile(new_fpath.as_posix(), mode="READ")
im.open()
make_im(new_fpath.as_posix(), cosmic_ray_method="NONE", verbose=False)
INFO:kspecdr.io.image:Opened file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted.fits (mode: READ)
INFO:kspecdr.preproc.make_im:Creating IM file from raw data with TDFIO_CREATEBYCOPY functionality...
INFO:kspecdr.preproc.make_im:Creating IM file from raw file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted.fits -> /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_im.fits
INFO:kspecdr.io.image:Opened file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted.fits (mode: READ)
INFO:kspecdr.preproc.make_im:Instrument: ISOPLANE, SPECTID: UNKNOWN, CLASS: , BITPIX: 16
INFO:kspecdr.io.image:Closed file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted.fits
INFO:kspecdr.io.image:Opened file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted.fits (mode: READ)
INFO:kspecdr.preproc.make_im:Creating variance HDU for raw file
INFO:kspecdr.preproc.make_im:Copying fiber table from source file
INFO:kspecdr.io.image:Opened file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_im.fits (mode: UPDATE)
INFO:kspecdr.io.image:Copied fiber table 'FIBRES' from source file
INFO:kspecdr.io.image:Closed file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_im.fits
INFO:kspecdr.io.image:Closed file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted.fits
INFO:kspecdr.preproc.make_im:Successfully created IM file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_im.fits
INFO:kspecdr.io.image:Opened file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_im.fits (mode: UPDATE)
INFO:kspecdr.preproc.make_im:0.01% of pixels were saturated
WARNING:kspecdr.io.image:Expected shape (1300, 1340), got (1340, 1300)
INFO:kspecdr.preproc.make_im:No bias subtraction performed
WARNING:kspecdr.io.image:Expected shape (1300, 1340), got (1340, 1300)
INFO:kspecdr.preproc.make_im:Variance HDU created and initialized
INFO:kspecdr.io.image:Closed file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_im.fits
'/data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_im.fits'

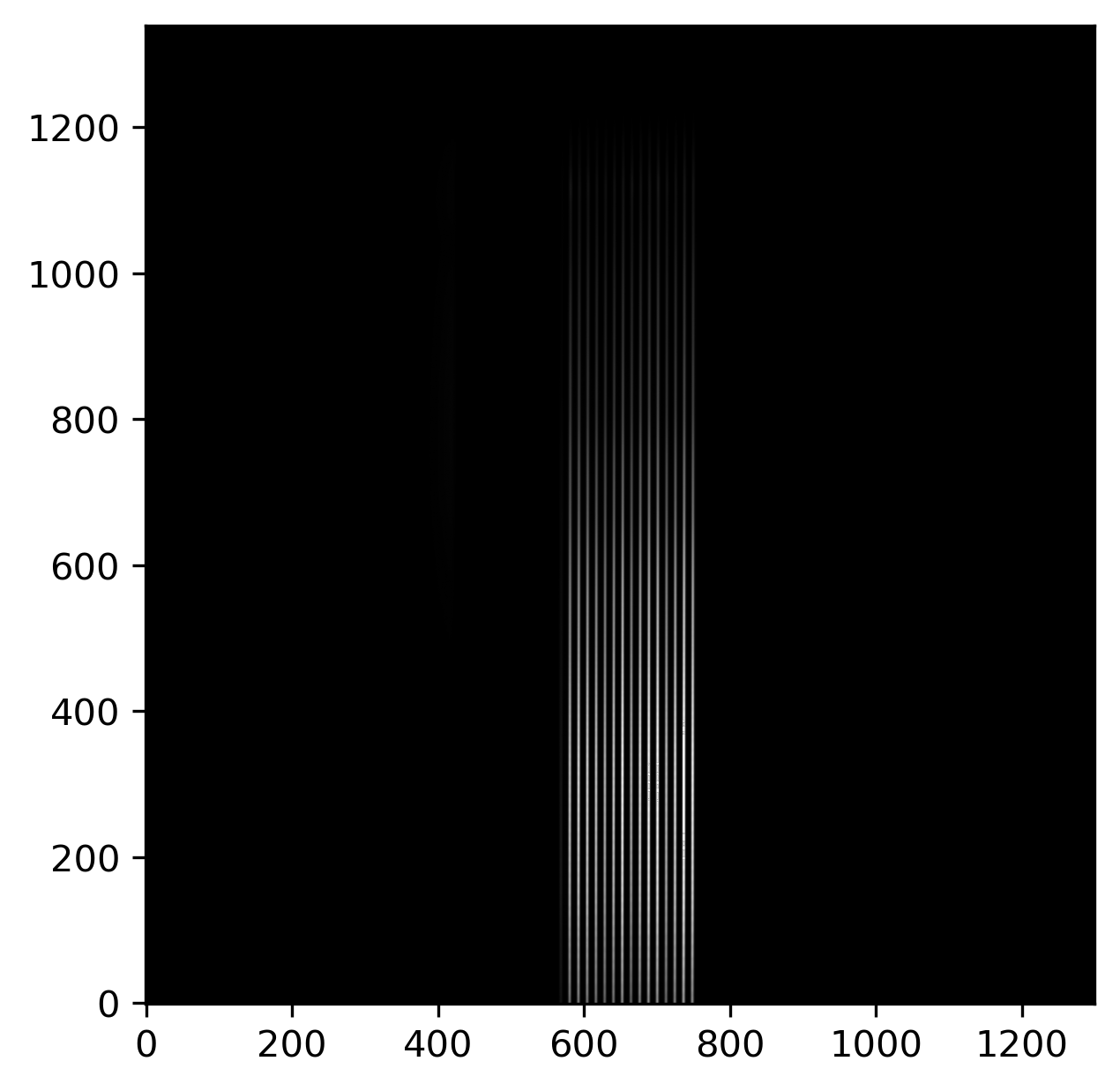

Load the preprocessed image (‘im’ file) and display it. This image serves as the input for tramline mapping.
fpath_im = new_fpath.parent / (new_fpath.stem + "_im.fits")
args = {"IMAGE_FILENAME": fpath_im.as_posix()}
im = ImageFile(fpath_im.as_posix(), mode="READ")
im.open()
img_data, var_data, fibre_types = read_instrument_data(im, 6)
plt.imshow(img_data, cmap="gray", origin="lower")
plt.show()
INFO:kspecdr.io.image:Opened file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_im.fits (mode: READ)
Check the instrument code of the image object to ensure it is correctly identified.
im.get_instrument_code()
99
Run make_tlm (Make Tramline Map) to identify the positions of the fiber traces across the CCD.
make_tlm(args)
Load the generated Tramline Map file and check its size.
fpath_tlm = new_fpath.parent / (new_fpath.stem + "_tlm.fits")
tlm = ImageFile(fpath_tlm.as_posix(), mode="READ")
tlm.open()
print(tlm.get_size())
hdul = fits.open(fpath_tlm)
tlm_data = hdul[0].data
print(tlm_data.shape)
hdul.info()

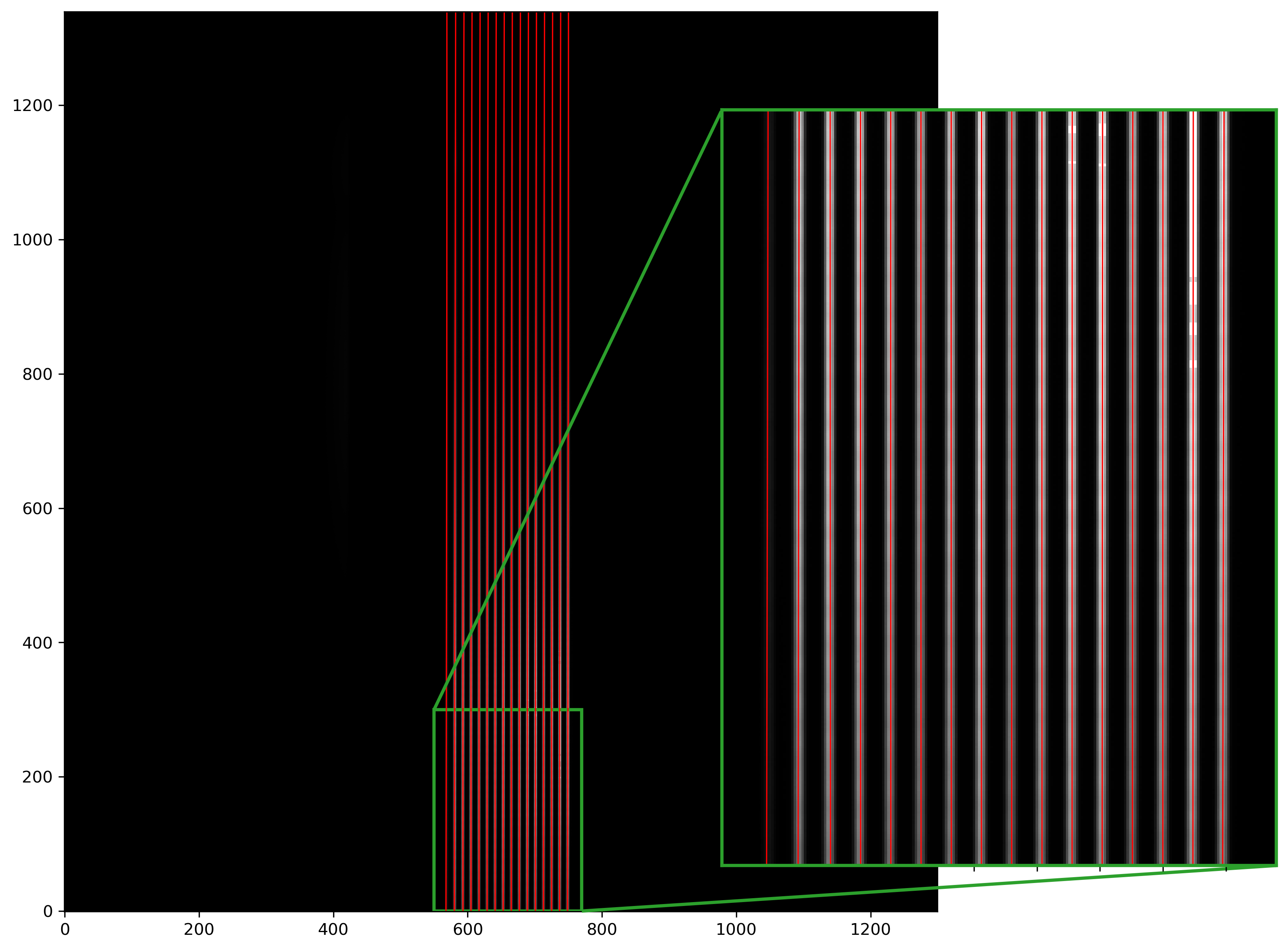

fig = plt.figure(figsize=(12, 10))
ax = fig.add_subplot(111)
ax.imshow(img_data, cmap="gray", origin="lower")
for tl in tlm_data:
ax.plot(tl, np.arange(tl.shape[0]), c="r", lw=0.8)
# Create inset axes for zoomed region
axins = inset_axes(
ax,
width="120%",
height="120%",
bbox_to_anchor=(0.7, 0.2, 0.95, 0.7),
bbox_transform=ax.transAxes,
)
axins.imshow(img_data, cmap="gray", origin="lower")
for tl in tlm_data:
axins.plot(tl, np.arange(tl.shape[0]), c="r", lw=0.8)
axins.set_xlim(550, 770)
axins.set_ylim(0, 300)
axins.set_xticklabels([])
axins.set_yticklabels([])
# Mark the inset region on the main plot
mark_inset(ax, axins, loc1=2, loc2=4, fc="none", ec="tab:green", lw=2)
for spine in axins.spines.values():
spine.set_edgecolor("tab:green")
spine.set_linewidth(2)
INFO:kspecdr.io.image:Opened file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_tlm.fits (mode: READ)
(1340, 16)
(16, 1340)
Filename: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_tlm.fits
No. Name Ver Type Cards Dimensions Format
0 PRIMARY 1 PrimaryHDU 9 (1340, 16) float64
1 WAVELA 1 ImageHDU 8 (1340, 16) float64

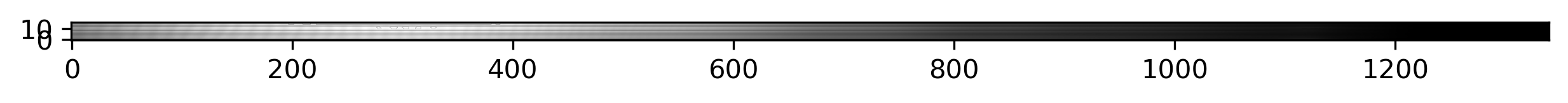

Run make_ex (Make Extraction) to extract 1D spectra from the 2D image using the spatial information from the Tramline Map. The result is an ‘ex’ file containing the extracted flux. We then load and display the 2D extracted spectral data.
fpath_ex = new_fpath.parent / (new_fpath.stem + "_ex.fits")
args["EXTRAC_FILENAME"] = fpath_ex.as_posix()
args["TLMAP_FILENAME"] = fpath_tlm.as_posix()
make_ex(args)
hdul = fits.open(fpath_ex)
hdul.info()
flat_ex = hdul[0].data
fig = plt.figure(figsize=(10, 10))
ax = fig.add_subplot(111)
ax.imshow(flat_ex, cmap="gray", origin="lower")
plt.show()
INFO:kspecdr.extract.make_ex:Extracting /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_im.fits -> /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_ex.fits using TLM /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_tlm.fits
INFO:kspecdr.extract.make_ex:Extraction Method: TRAM
INFO:kspecdr.io.image:Opened file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_im.fits (mode: READ)
INFO:kspecdr.io.image:Opened file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_tlm.fits (mode: READ)
INFO:kspecdr.io.image:Closed file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_tlm.fits
INFO:kspecdr.io.image:Closed file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_im.fits
INFO:kspecdr.extract.make_ex:Performing SUM extraction with width=5.0
INFO:kspecdr.extract.make_ex:Written extracted file: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_ex.fits
Filename: /data1/hbahk/kspec/kspecdr/resources/isoplane_arctest_20251224/flat_150_490_1sec_converted_ex.fits
No. Name Ver Type Cards Dimensions Format
0 PRIMARY 1 PrimaryHDU 196 (1340, 16) float32
1 VARIANCE 1 ImageHDU 8 (1340, 16) float32
2 WAVELA 1 ImageHDU 8 (1340, 16) float32
3 FIBRES 1 BinTableHDU 13 16R x 2C [1A, 20A]

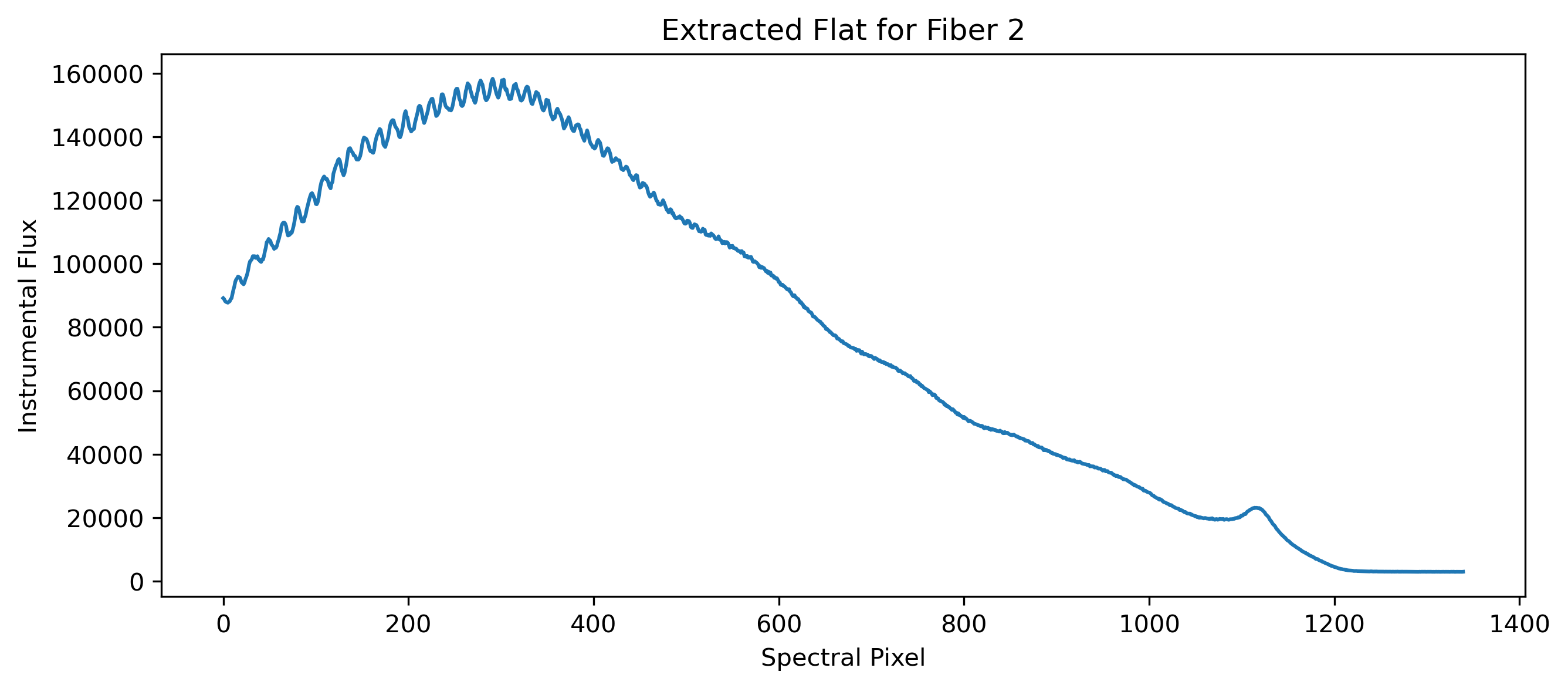

Plot the extracted spectrum for a single fiber (Fiber 2) to verify the extraction quality.
fig = plt.figure(figsize=(10, 4))
ax = fig.add_subplot(111)
ax.plot(flat_ex[1])
ax.set_ylabel("Instrumental Flux")
ax.set_xlabel("Spectral Pixel")
ax.set_title("Extracted Flat for Fiber 2")
plt.show()
Define the list of arc files (Hg, Ne, Kr, Cd) and process each one: convert the header, preprocess with make_im, and extract spectra with make_ex using the Tramline Map derived from the flat field.
fpaths = [
TESTDIR / "Hg_paper_150_620_1sec 2025-12-24 12_09_50.fits",
TESTDIR / "Ne_150_620_0.fits",
TESTDIR / "Kr_150_620_0.fits",
TESTDIR / "hgcd 2025-12-24.fits",
]
converted_fpaths = [
TESTDIR / "Hg_150_620_converted.fits",
TESTDIR / "Ne_150_620_0_converted.fits",
TESTDIR / "Kr_150_620_0_converted.fits",
TESTDIR / "hgcd 2025-12-24_converted.fits",
]
for fpath, converted_fpath in zip(fpaths, converted_fpaths):
hdul = fits.open(fpath)
hdr = hdul[0].header
# cleaned_hdr = sanitize_header_drop_unparsable(hdr)
new_hdr = convert_isoplane_header(hdr, ndfclass="MFARC")
# add fiber table
add_fiber_table(hdul, n_fibers=16)
# just use the first frame for now
hdul[0].data = hdul[0].data[0]
# make new fits file with new header and fiber table
new_hdr["NAXIS"] = 2
new_hdr.remove("NAXIS3")
hdul[0].header = new_hdr
new_fpath = converted_fpath
hdul.writeto(new_fpath, overwrite=True)
make_im(new_fpath.as_posix(), cosmic_ray_method="NONE", verbose=False)
fpath_im = new_fpath.parent / (new_fpath.stem + "_im.fits")
fpath_ex = new_fpath.parent / (new_fpath.stem + "_ex.fits")
args = {
"IMAGE_FILENAME": fpath_im.as_posix(),
"EXTRAC_FILENAME": fpath_ex.as_posix(),
"TLMAP_FILENAME": fpath_tlm.as_posix(),
}
make_ex(args)

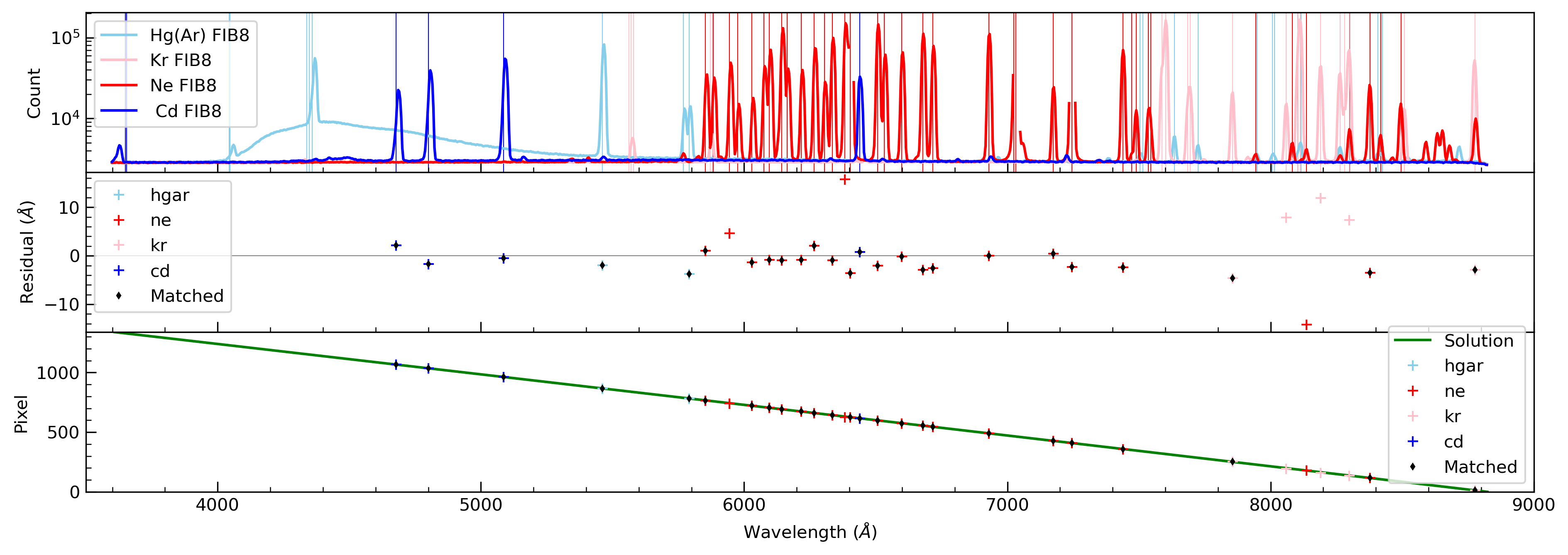

Run reduce_arcs to perform wavelength calibration. This function takes the extracted arc files, identifies arc lines, fits a wavelength solution, and combines the results.
hg_raw_fpath = TESTDIR / "Hg_150_620_converted.fits"
hg_im_fpath = hg_raw_fpath.with_stem(hg_raw_fpath.stem + "_im")
hg_ex_fpath = hg_im_fpath.with_stem(hg_raw_fpath.stem + "_ex")
hg_red_fpath = hg_im_fpath.with_stem(hg_raw_fpath.stem + "_red")
ne_raw_fpath = TESTDIR / "Ne_150_620_0_converted.fits"
ne_im_fpath = ne_raw_fpath.with_stem(ne_raw_fpath.stem + "_im")
ne_ex_fpath = ne_im_fpath.with_stem(ne_raw_fpath.stem + "_ex")
ne_red_fpath = ne_im_fpath.with_stem(ne_raw_fpath.stem + "_red")
kr_raw_fpath = TESTDIR / "Kr_150_620_0_converted.fits"
kr_im_fpath = kr_raw_fpath.with_stem(kr_raw_fpath.stem + "_im")
kr_ex_fpath = kr_im_fpath.with_stem(kr_raw_fpath.stem + "_ex")
kr_red_fpath = kr_im_fpath.with_stem(kr_raw_fpath.stem + "_red")
cd_raw_fpath = TESTDIR / "hgcd 2025-12-24_converted.fits"
cd_im_fpath = cd_raw_fpath.with_stem(cd_raw_fpath.stem + "_im")
cd_ex_fpath = cd_im_fpath.with_stem(cd_raw_fpath.stem + "_ex")
cd_red_fpath = cd_im_fpath.with_stem(cd_raw_fpath.stem + "_red")
hg_args = {
"RAW_FILENAME": hg_raw_fpath.as_posix(),
"IMAGE_FILENAME": hg_im_fpath.as_posix(),
"TLMAP_FILENAME": fpath_tlm.as_posix(),
"EXTRAC_FILENAME": hg_ex_fpath.as_posix(),
"OUTPUT_FILENAME": hg_red_fpath.as_posix(),
"USE_GENCAL": True,
"ARCDIR": WD / "data" / "arc_tables",
"LAMPNAME": "hgar",
}
ne_args = {
"RAW_FILENAME": ne_raw_fpath.as_posix(),
"IMAGE_FILENAME": ne_im_fpath.as_posix(),
"TLMAP_FILENAME": fpath_tlm.as_posix(),
"EXTRAC_FILENAME": ne_ex_fpath.as_posix(),
"OUTPUT_FILENAME": ne_red_fpath.as_posix(),
"USE_GENCAL": True,
"ARCDIR": WD / "data" / "arc_tables",
"LAMPNAME": "ne",
}
kr_args = {
"RAW_FILENAME": kr_raw_fpath.as_posix(),
"IMAGE_FILENAME": kr_im_fpath.as_posix(),
"TLMAP_FILENAME": fpath_tlm.as_posix(),
"EXTRAC_FILENAME": kr_ex_fpath.as_posix(),
"OUTPUT_FILENAME": kr_red_fpath.as_posix(),
"USE_GENCAL": True,
"ARCDIR": WD / "data" / "arc_tables",
"LAMPNAME": "kr",
}
cd_args = {
"RAW_FILENAME": cd_raw_fpath.as_posix(),
"IMAGE_FILENAME": cd_im_fpath.as_posix(),
"TLMAP_FILENAME": fpath_tlm.as_posix(),
"EXTRAC_FILENAME": cd_ex_fpath.as_posix(),
"OUTPUT_FILENAME": cd_red_fpath.as_posix(),
"USE_GENCAL": True,
"ARCDIR": WD / "data" / "arc_tables",
"LAMPNAME": "cd",
}
wavecal = reduce_arcs([hg_args, ne_args, kr_args, cd_args], get_diagnostic=True)
Load the results of the wavelength calibration, including the calibrated spectra and the calibration dictionary containing coefficients and residuals.
ref_fib = 8
ifib = ref_fib - 1
hgar_hdul = fits.open(hg_red_fpath)
hgar_f8 = hgar_hdul[0].data[ifib]
wave = hgar_hdul[2].data[ifib]
ne_hdul = fits.open(ne_red_fpath)
ne_f8 = ne_hdul[0].data[ifib]
kr_hdul = fits.open(kr_red_fpath)
kr_f8 = kr_hdul[0].data[ifib]
cd_hdul = fits.open(cd_red_fpath)
cd_f8 = cd_hdul[0].data[ifib]
coeffs = wavecal["coeffs"]
x_pts = wavecal["x_pts"]
y_pts = wavecal["y_pts"]
residuals = wavecal["residuals"]
outliers = wavecal["outliers"]
lamps = np.array(wavecal["lamps"])
Visualize the results of the wavelength calibration. The plots show the calibrated spectra for reference fiber 8, the residuals of the fit for each lamp, and the global wavelength solution.
cdir = {"hgar": "skyblue", "ne": "red", "kr": "pink", "cd": "blue"}
fig, axes = plt.subplots(3, 1, figsize=(15, 5), sharex=True)
ax = axes[0]
ax.plot(wave, hgar_f8, label="Hg(Ar) FIB8", c="skyblue")
ax.plot(wave, kr_f8, label="Kr FIB8", c="pink")
ax.plot(wave, ne_f8, label="Ne FIB8", c="red")
ax.plot(wave, cd_f8, label=" Cd FIB8", c="blue")
nx = 2
xvec = np.array([3000, 9000])
for lamp in ["hgar", "ne", "kr", "cd"]:
wlist, ilist, labels, nlist = read_arc_file(
nx, xvec, lamp, arc_dir=WD / "data" / "arc_tables"
)
for i in range(len(wlist)):
ax.axvline(wlist[i], color=cdir[lamp], lw=0.5, zorder=0)
ax.legend()
ax.set_yscale("log")
ax.set_xlim(3500, 9000)
ax.set_ylabel("Count")
ax = axes[1]
for lamp in ["hgar", "ne", "kr", "cd"]:
xs = x_pts[lamps == lamp]
ys = y_pts[lamps == lamp]
res = residuals[lamps == lamp]
out = outliers[lamps == lamp]
ax.plot(ys, res, label=lamp, c=cdir[lamp], ls="", marker="+")
ax.plot(
y_pts[~outliers],
residuals[~outliers],
c="k",
ls="",
marker="d",
ms=2,
label="Matched",
)
ax.legend()
ax.axhline(0, c="gray", lw=0.5, zorder=0)
ax.set_ylabel(r"Residual ($\AA$)")
ax = axes[2]
xx = np.arange(1340)
yy = np.polyval(coeffs, xx)
ax.plot(yy, xx, label="Solution", c="green")
for lamp in ["hgar", "ne", "kr", "cd"]:
xs = x_pts[lamps == lamp]
ys = y_pts[lamps == lamp]
out = outliers[lamps == lamp]
ax.plot(ys, xs, label=lamp, c=cdir[lamp], ls="", marker="+")
ax.plot(
y_pts[~outliers], x_pts[~outliers], c="k", ls="", marker="d", ms=2, label="Matched"
)
ax.legend()
ax.set_xlabel(r"Wavelength ($\AA$)")
ax.set_ylabel("Pixel")
ax.set_xlim(3500, 9000)
ax.set_ylim(0, len(wave))
ax.legend()
for ax in axes:
# minor ticks direction in
ax.minorticks_on()
ax.tick_params(which="both", direction="in")
ax.tick_params(which="major", length=6)
ax.tick_params(which="minor", length=3)
fig.subplots_adjust(hspace=0.0)
INFO:kspecdr.wavecal.arc_io:Reading arc file /data1/hbahk/kspec/kspecdr/data/arc_tables/hgar.arc
INFO:kspecdr.wavecal.arc_io:Read 20 arc lines from /data1/hbahk/kspec/kspecdr/data/arc_tables/hgar.arc
INFO:kspecdr.wavecal.arc_io:Reading arc file /data1/hbahk/kspec/kspecdr/data/arc_tables/ne.arc
INFO:kspecdr.wavecal.arc_io:Read 37 arc lines from /data1/hbahk/kspec/kspecdr/data/arc_tables/ne.arc
INFO:kspecdr.wavecal.arc_io:Reading arc file /data1/hbahk/kspec/kspecdr/data/arc_tables/kr.arc
INFO:kspecdr.wavecal.arc_io:Read 19 arc lines from /data1/hbahk/kspec/kspecdr/data/arc_tables/kr.arc
INFO:kspecdr.wavecal.arc_io:Reading arc file /data1/hbahk/kspec/kspecdr/data/arc_tables/cd.arc
INFO:kspecdr.wavecal.arc_io:Read 6 arc lines from /data1/hbahk/kspec/kspecdr/data/arc_tables/cd.arc
Important
To-dos
Saturated pixels are not properly handled, making the fit unstable. We have to test the uniformity of the lamp across the fibers and optimized exposure times for each lamp.
The available lines in the short wavelength range are overlapped with each other, making it difficult to identify the lines. Allowing the use of blended lines might be helpful.
Check the wavelength of the line atlas to see if there are more precise values.
The line atlas is not complete, so some lines are not included. Including more lines with reliable intensity might help.
